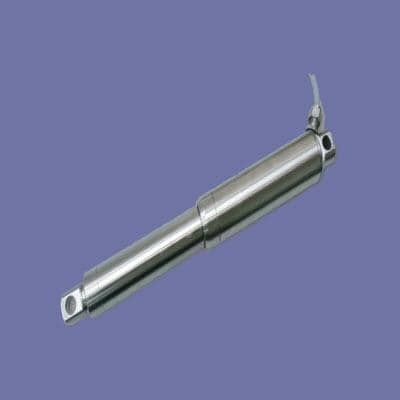

- VMD12 Series Actuators

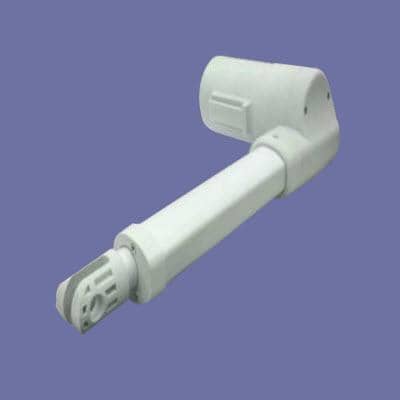

- VMD66 Series Actuators
- 800 Series Acme Screw Actuators
- VFD Series Actuators
- VSJ Series ACME Screw Actuators
- VI Series Actuator in Acme or Ball Screw
- VMD Series Actuators
- Custom Actuator Design

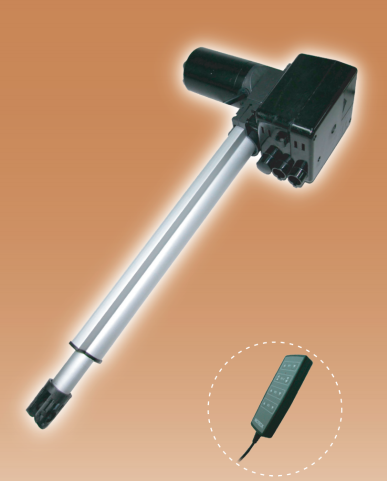

- FD Series Linear Actuator
- Standard vmd3 Series Actuator
- Potentiometer vmd3 Series Actuator
- SJ 25 AC Actuator
- SJ 35 AC Actuator

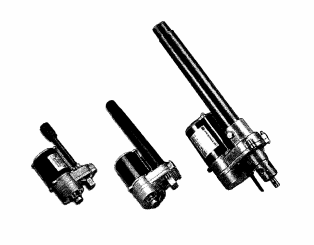

- SJ 45 AC Actuator

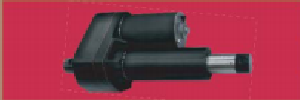

- VID8-A Acme Actuator
- VID8-B Ballscrew Actuator
- VIA5 Acme Series Linear Actuators

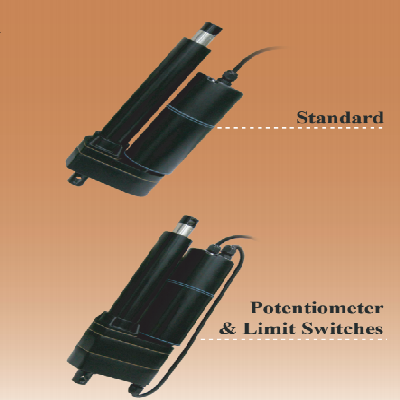

- VIA5 Ball Screw Series Linear Actuator
- Hall Effect VMD3 series Actuator
- 1200 Series Linear Actuator
Upload your design & get your customized product.
VMD10 Series Actuators
Make & Model :
Description
At Venture Mfg. Co., we are always looking ways to broaden our product range. With this attitude, we have added a new actuator to our product line – VMD10. This actuator has a compact, yet powerful in-line design. The linear and compact design of this actuator, makes it ideal for use in different industrial applications such as industrial automation, rehabilitation applications, and other commercial applications. These actuators are designed for applications having limited installation space. The VMD10 actuators may also be used in different desk applications to adjust the height.
Specialized Features and Benefits
Compatibility of VMD10 Actuator
This series of actuator is compatible with the VT control box, and VCB3T control box which are compatible with handsets such as:
- VHD
- VHT
- VH2N
- VRF
- VTX
Specifications of VMD10 Actuator
Following are the standard specifications of the VMD10 actuator series that we provide:
| Input Voltage | 24V DC / 12V DC |
| Maximum Load | 1000N (push/pull) |
| Maximum Current | 5.4 A |
| Maximum Speed | 18 mm/s at no load |
| IP Protection Level | IPX4 |
| Color | Black & Silver |
| Noise Level | ≤ 65 dB |
| Duty Cycle | 10% or 2 minutes on 18 minutes off |
| Stroke | 50~300 mm (other stroke available) |
| Retracted length (A) |
C1x, C3x, CBx ? stroke + 256mm C9x ? stroke + 282mm CAx ? stroke + 265mm |
| Extended length (B) | S+A |
The actuator series has two design options available- spiral cable and straight cable. It is provided with preset limit switches. The two types of connectors that can be used with this actuator include - Round and Flat plug (2pin), and F type Din plug (4pin). You can select the right actuator from the VMD10 series, based on the following table:
| Model No. | Push Max.(N) | Pull Max.(N) | Speed (mm/s) | Current (A) | ||||
|---|---|---|---|---|---|---|---|---|
| No Load | Full Load | No Load | Full Load | |||||
| 12V | 24V | 12V | 24V | |||||
| VMD10-XX-A4-16-XXX.XXX-CXX | 1000 | 1000 | 8 | 6 | 4.2 | 3.1 | 5.4 | 3.8 |
| VMD10-XX-A6-16-XXX.XXX-CXX | 1000 | 1000 | 9 | 6.5 | 4.3 | 3.1 | 5.3 | 3.7 |
| VMD10-XX-A8-16-XXX.XXX-CXX | 800 | 800 | 13 | 7.5 | 4.2 | 3.1 | 5.2 | 3.6 |
| VMD10-XX-AC-16-XXX.XXX-CXX | 500 | 500 | 18 | 12 | 4.3 | 3.1 | 4.9 | 3.4 |
