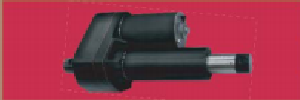

VID8-A Acme Actuator
Description
VID8-A Acme Actuator for Effortless Automation in Heavy Duty Applications
At Venture Mfg. Co., we are always looking at expanding our product line, in an effort to provide our customers with a complete range of actuator solutions. Recently, we have added two new actuator types to our product line. We are proud to say that Venture Mfg. Co. now offers VID8 Acme Actuators to industrial customers. In this page we shall be discussing the Acme VID8-A actuators.
Specialized Features and Benefits
VID8-A Acme Actuator Features
The VID8-A Acme Actuators are similar to our popular acme screw actuators. These are designed to provide automation solutions for high load processes. Like the screw actuators, these products are designed with a combination of Acme screws and DC motor gearboxes. This provides an efficient linear drive system, which adds to the actuator’s performance. We offer these actuators in two types –
- Standard

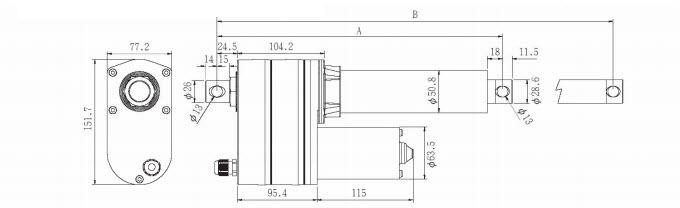

- Limit switches and potentiometers (POT)

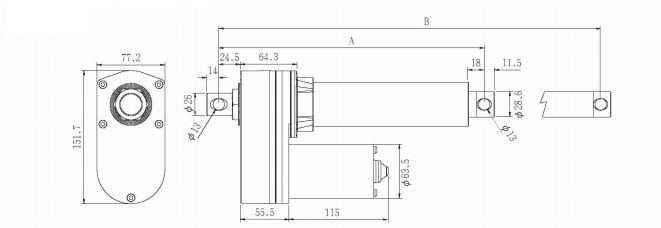

Specifications of VID8-A Actuator
 |
Strock(+-5mm) | 102mm | 152mm | 203mm | 305mm | 457mm | 610mm |
|---|---|---|---|---|---|---|---|
| Retracted Length(A+-3mm) | 260mm | 311mm | 362mm | 464mm | 691mm | 844mm | |
| Extended Length(B+-3mm) | 362mm | 464mm | 566mm | 770mm | 1150mm | 1456mm |
|
|
Strock(+-5mm) | 102mm | 152mm | 203mm | 305mm | 457mm | 610mm |
|---|---|---|---|---|---|---|---|
| Retracted Length(A+-3mm) | 300mm | 351mm | 402mm | 504mm | 731mm | 884mm | |
| Extended Length(B+-3mm) | 402mm | 504mm | 606mm | 810mm | 1190mm | 1496mm |
Industrial Applications
VID8-A Acme Actuators can be used in the following industrial applications:
- Solar Tracking
- Commercial Satellite Tracking
- Agricultural Machinery Automation
- Opening and Closing System of Heavy Flow Gates
Venture Mfg. Co.’s Acme Actuators provides tracking and movement solutions for heavy duty industrial applications. Contact us to place an order on our VID 8 ACME actuators, or to discuss your custom requirements.
