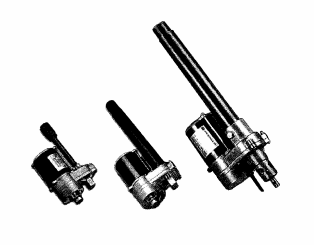

SJ 35 AC Actuator
Description
SJ 35 Series AC Actuators – for Silent and Precise Operations
The SJ 35 actuators is the second model in the series. Like the 25 AC actuator, this product is also designed to provide multiple solutions and benefits to applications and customers.
Specialized Features and Benefits
SJ 35 AC Actuator Features
These acme screw actuators are designed to be light in weight and compact in size. This makes the actuators easy to handle and install. The AC motor provides benefits of silent and powerful operations.
Apart from the mounting options, Venture Mfg. also provides stroke options for the VSJ Series actuators. Stroke options are provided up to 600 mm. The adjustable limit switches add to its versatility. Venture Mfg. Co. also offers connection options, including connectors, control boxes, and motor controllers.
While their primary use is in domestic and commercial applications, the VSJ actuators can also be used with medical devices, and material handling systems.
Standard Actuator Additional Features
The general specifications of the SJ 35 Series actuator include:
- Voltage: 115 and 230 VAC
- Duty Cycle in Percentage: 17%
- Temperature for Motor Thermal Protection: +120+5oC
-
Certifications:
- UL E128837
- CSA – LR92531 (115 VAC), E226168 (230 VAC)
SJ 35 actuator Technical Data
The following information in the picture below provides detailed specifications for the VSJ 35 actuator.
| Type | Force Push | Pull | Max. Speed | Stroke*(S) | Retr. length**(L) | Voltage | Protection Class | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| No Load | Full Load | ||||||||
| N | N | mm/s | mm/s | mm | mm | VAC | IP | kg | |
| SJ255 | 2000 | 2000 | 7.2 | 6.6 | 100-600 | S+190/200/215 | 115/230 | N/A | 4.0 |
| SJ256 | 2500 | 2500 | 6.0 | 5.5 | 100-600 | S+190/200/215 | 115/230 | N/A | 4.0 |
| SJ258 | 3000 | 3000 | 4.5 | 4.0 | 100-600 | S+190/200/215 | 115/230 | N/A | 4.0 |
| SJ355 | 3000 | 3000 | 7.2 | 6.6 | 100-600 | S+190/200/215 | 115/230 | N/A | 4.5 |
| SJ356 | 3500 | 3500 | 6.0 | 5.5 | 100-600 | S+190/200/215 | 115/230 | N/A | 4.5 |
| SJ358 | 4000 | 4000 | 4.5 | 4.0 | 100-600 | S+190/200/215 | 115/230 | N/A | 4.5 |
| SJ455 | 4000 | 4000 | 7.2 | 6.6 | 100-600 | S+190/200/215 | 115/230 | N/A | 5.0 |
| SJ456 | 4500 | 4500 | 6.0 | 5.5 | 100-600 | S+190/200/215 | 115/230 | N/A | 5.0 |
| SJ458 | 5000 | 5000 | 4.5 | 4.0 | 100-600 | S+190/200/215 | 115/230 | N/A | 5.0 |
If you wish to know about our products or services, please contact us via telephone on (937) 233-8792, or via email at sales@venturemfgco.com.
